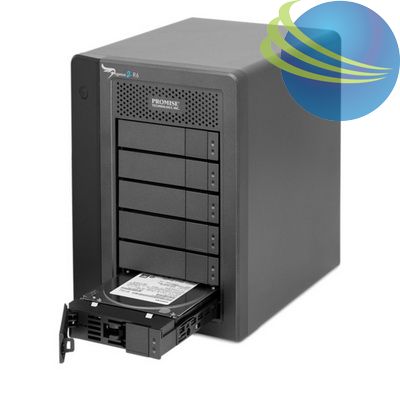

PROMISE Pegasus2 R6 12TB (6 by 2TB) Thunderbolt 2 RAID System

• 6-Bay hardware RAID 5/6 solution featuring Thunderbolt™ 2

• 12TB model offers best value for performance, protection and capacity

• 18TB model offers best value at lowest cost for both performance and protection

• Blistering performance for creative professionals creating high-resolution video and rich media content

• Maximizes the available line rate of Thunderbolt™ 2

• Video creators, photographers, graphic artists, and engineers alike can transfer and display 4K video files simultaneously at lightning speeds

• Create, edit, and view live 4K video streams while simultaneously backing up files to the system

• Dual Thunderbolt ports for daisy chaining Pegasus enclosure units, Apple Thunderbolt displays, or Mini DisplayPort devices

• Removable drive bays for effortless drive access and serviceability

General	Pegasus2 R2+	Pegasus2 M4	Pegasus2 R4	Pegasus2 R6	Pegasus2 R8
Form Factor	Desktop 2-Bay Enclosure plus Media Bay	4-Bay hardware RAID enclosure	4-Bay hardware RAID enclosure	6-Bay hardware RAID enclosure	8-Bay hardware RAID enclosure
Thunderbolt Technology Ports	2x Thunderbolt™ 2 ports (20 Gbps) 1x USB 3.0 Type-B port (5GBps)*	2x Thunderbolt™ 2 technology ports (20 Gbps)	2x Thunderbolt™ 2 technology ports (20 Gbps)	2x Thunderbolt™ 2 technology ports (20 Gbps)	2x Thunderbolt™ 2 technology ports (20 Gbps)
Pods	HDD Pod SSD Reader Pod CF/SD Reader Pod
Cables	R2+ Unit – 1x Thunderbolt™ 2 cable, 1x USB 3.0 Type A to Type B cable Pods – 1x USB 3.0 Type-A to micro-B
RAID Levels	0, 1	0, 1, 5, 6, 10	0, 1, 5, 6, 10	0, 1, 5, 6, 10, 50	0, 1, 5, 6, 10, 50, 60
Compatibility	6TB (2 x 3TB) 7200 RPM	4TB (4x1TB), 2TB (4 x 500GB SSD)	8TB (4x2TB), 12TB (4x3TB)	12TB (6x2TB), 18TB (6x3TB), 24TB (6x4TB)	24TB (8x3TB), 32TB (8x4TB), 48TB (8x6TB)
Dimensions	H : 5.3 in / 13.48 cm W : 7.3 in / 18.5 cm L : 9.8 in / 24.95 cm	H : 4.2 in / 10.7 cm W : 5.0 in / 12.7 cm L : 6.6 in / 16.7 cm	H : 7.5 in / 19.2 cm W : 9.6 in / 24.5 cm L : 7.3 in / 18.7 cm	H : 9.8 in / 25.1 cm W : 9.6 in / 24.5 cm L : 7.3 in / 18.7 cm	H : 12.2 in / 31.0 cm W : 9.6 in / 24.5 cm L : 7.3 in / 18.7 cm
Weight	13.41 lb / 6.1 kg	5.5 lb / 2.9 kg	15 lb / 6.8 kg	20.1 lb / 9.1 kg	24.2 lb / 11 kg
Supported Operating Systems	OS X 10.8.5 or higher, Windows	OS X 10.8.5 or higher, Windows*	OS X 10.8.5 or higher, Windows*	OS X 10.8.5 or higher, Windows*	OS X 10.8.5 or higher, Windows*
Warranty	2-year warranty	2-year warranty	2-year warranty	2-year warranty	2-year warranty
